ScienceShell

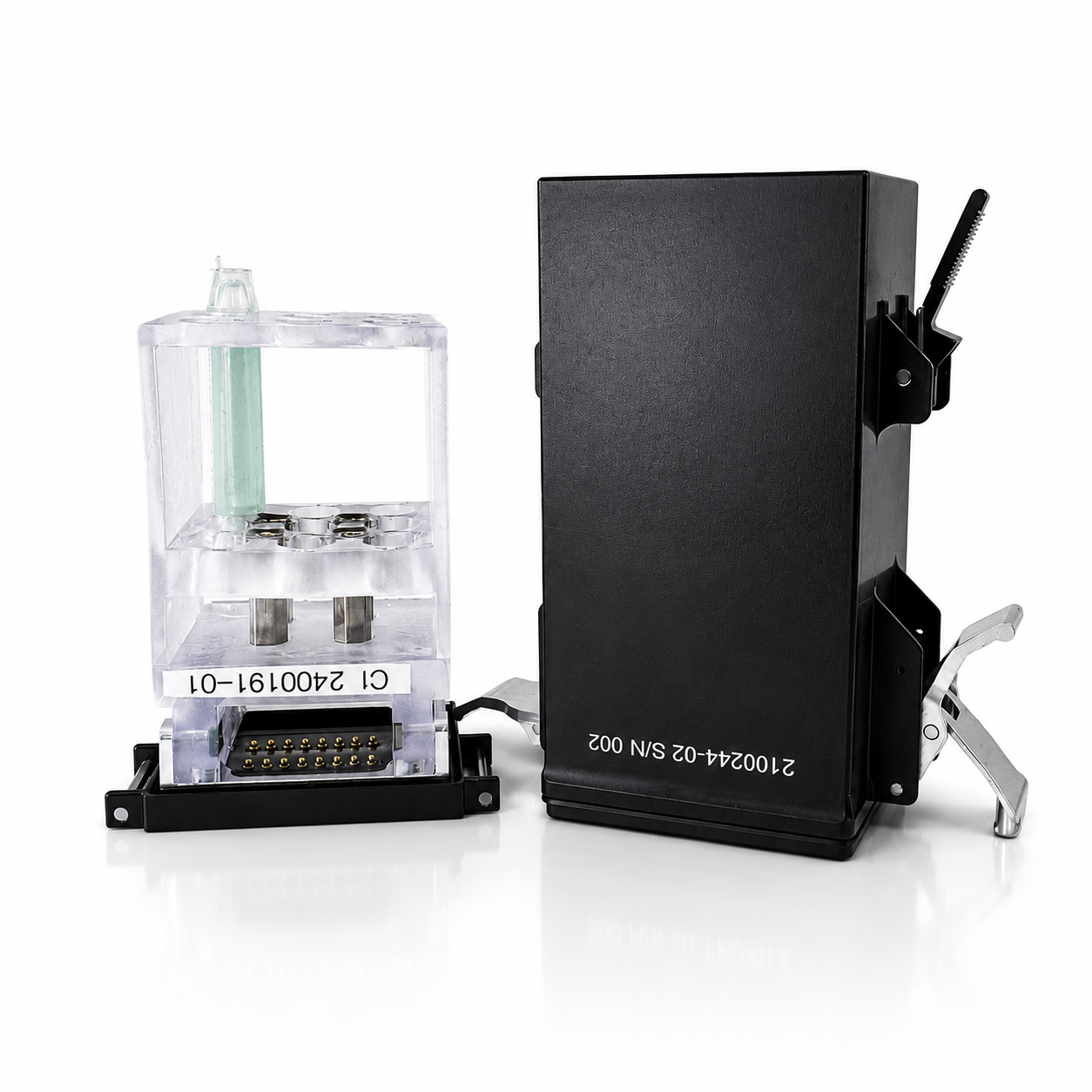

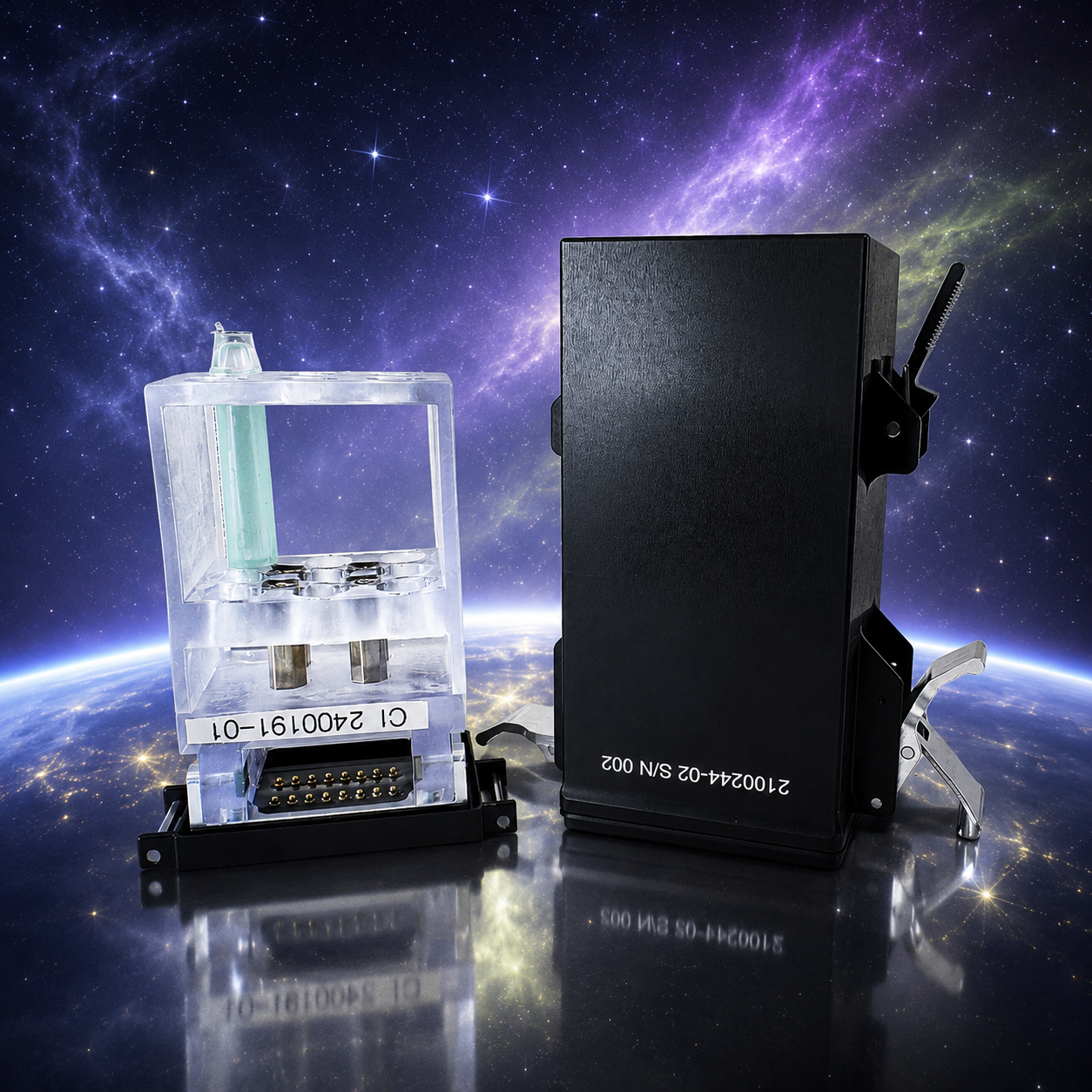

Bioreactor Type-XIV ScienceShell

The Type-XIV ScienceShell enables parallel cultivation of up to nine cell or bacterial cultures in microgravity, featuring a modular, customizable design with optional LEDs and sensors for precise, application-specific experimental control.

BIOREACTORS/MINILABS

Bioreactor Type-XIV ScienceShell

The Type-XIV ScienceShell is designed to accommodate up to nine test tubes, enabling parallel cultivation of cell or bacterial cultures under microgravity conditions. Its modular tube holder and baseplate provide secure positioning and isolation of each sample, allowing multiple experiments to be conducted simultaneously within a single unit.

Each ScienceShell can be custom-tailored to match specific volume and sample size requirements and is manufactured under controlled conditions to ensure flawless integration of biological materials into the experimental container. Optional LEDs and sensors can be integrated to monitor or influence environmental parameters according to the needs of each scientific application.


Bioreactor Type-XIV ScienceShell

Facts

  • Compatible OuterShell: 348

  • Automation Level: Fully Autonomous

    Operation Type: Passive

  • LoC: 3 ; 1 (InnerShell) + 2 (OuterShell)

  • Maturity: Spaceflight Proven (TRL 9)

  • Material of CC and Tank: Biocompatible photopolymer resin

    Manufacturing Process: 3D Printed, Assembled by Yuri

  • Number of Test Tubes: 9

  • Volume of Test Tubes: 1 ml each

  • Medium Exchange: NA

  • Advanced accessories: LEDs, Sensors

Flown material/cells:

Astrobiome Champion Strain™ Bacteria (Lactic acids bacteria)

Missions flew:

HUMB

Compatibility of Facility:

ScienceTaxi Haven-1, ScienceTaxi BioSpin, SABL, Kubik, through ScienceBox (TangoLab & ICE Cubes)

Everything at a glance
